Flash Trigger

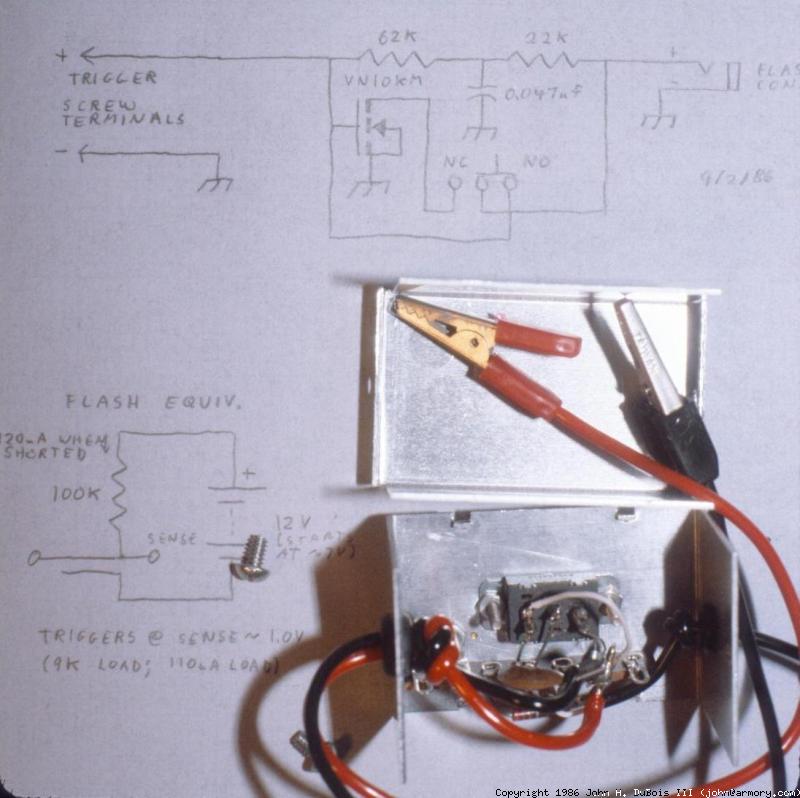

The trigger was made for a Mamiyalite ZE flash unit. It uses the power available from the flash's trigger terminals to power the circuit that converts a normally-closed trigger circuit into the normally-open signal that the flash requires. This is done by bleeding off power through a high enough resistance that the flash does not trigger.

   |⟨       ⟨       ⟩       ⟩|
